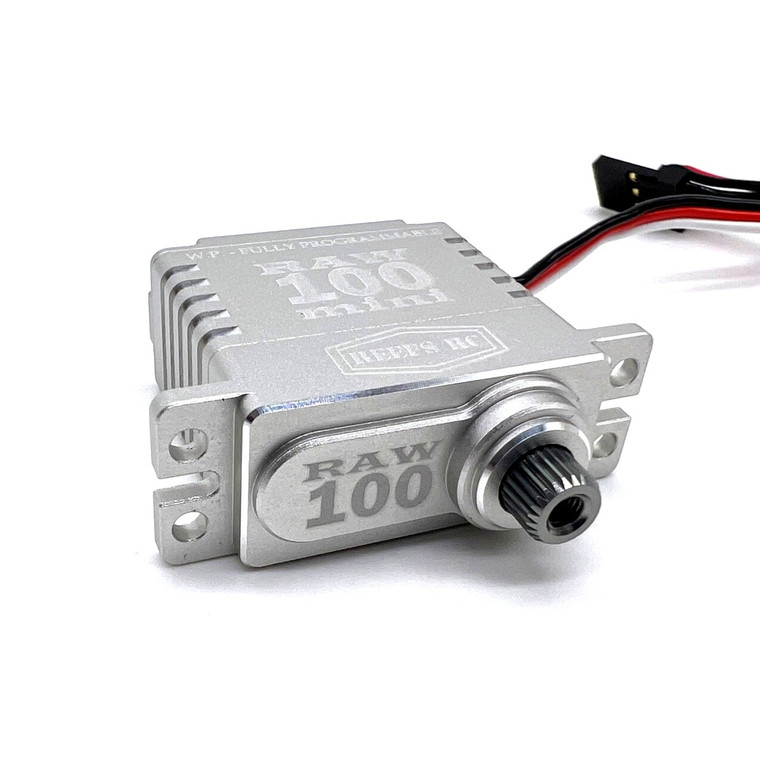

Reef's RC - RAW 100 Mini Servo Programmable - REEFS134

Reef's RC - RAW 100 Mini Servo Programmable - REEFS134

Reef's RC
SKU:
PRH-SEHREEFS134
|
UPC:
602024523567
$84.99
$89.99
(You save $5.00 )
Current Stock:
Adding to cart… The item has been added
Description
REEFS RC RAW 100 Mini Servo is a powerhouse in a small package. The heatsink all aluminum waterproof case design ensures it is ready to go for any application. The servo is fully programmable with REEFS LINK (sold separately).

Features:

  • High Torque High Speed Mini Coreless Servo
  • Submarine Waterproof
  • Magnetic Angle Sensor, Pulse Width Modulation Control
  • REEFS LINK required for Programming
  • Temp Rate: -15C ~ +70C
  • Voltage: 6V-8.4V; Dead Band Width: 2microseconds

    • Specifications:

  • All Metal Gears, CNC Aluminum Casing with integrated Heat Sink design, Bearing Type: 2BB, 25T Spline
  • Dimension (LWH):1.16x.55x1.14in / 29.5x14x29mm, Weight: 1.05oz / 30g
  • Torque: 85oz-in @ 6.0V/95oz-in @ 7.4V/103oz-in @ 8.4V
  • Speed: .11sec @ 6.0V/.10sec @ 7.4V/.08sec @ 8.4V
  • Unload Current: 180mA/200mA/230mA/260mA @ 4.8V/6.0V/7.4V/8.4V
  • Load Current: 1.2A/1.4A/1.5A/1.8A @ 4.8V/6.0V/7.4V/8.4V


    • High Torque High Speed Mini Coreless Servo
    Submarine Waterproof
    Magnetic Angle Sensor, Pulse Width Modulation Control
    REEFS LINK required for Programming
    Temp Rate: -15C ~ +70C
    Voltage: 6V-8.4V; Dead Band Width: 2microseconds
