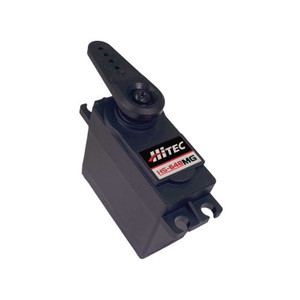

Hitec - HS-648MG High Torque Metal Gear 25T Analog Sport Servo - 32648S
Hitec
$34.99
$54.95
(You save
$19.96
)
Write a Review
Hitec
Hitec - HS-648MG High Torque Metal Gear 25T Analog Sport Servo - 32648S
Featuring the industry standard 25-tooth output spline with 3mm hex screw, and metal gears for maximum durability, Hitec's HS-648MG is the 25-tooth version of their powerful high-torque HS-645MG. It's the perfect choice for those larger sport planes or monster trucks and buggies requiring a durable high torque servo. Equipped with their unique M/P and metal gear train technology, the HS-648MG offers one of the strongest gear trains available in any servo.
Features:
- High Torque Metal Gear Servo
- 25 Tooth Output Spline
- Revolutionary Metal/Plastic First Gear (MP Gear)
- Cored Metal Brush Motor
- Dual Ball Bearing Supported Output Shaft
- Top Selling High Torque Metal Gear Servo
Specifications:
- Operating Voltage Range: 3.5 ~ 6.8V
- Voltage: 4.8V / 6.0V
- No Load Speed: 0.24sec/60deg / 0.20sec/60deg
- Stall Torque: 7.7kgf-cm (106.93 oz-in) / 9.6kgf-cm (133.32 oz-in)
- Peak Efficiency Torque: 1.5kgf-cm (20.8 oz-in) / 1.9kgf-cm (26.4 oz-in)
- Standing Current: 9mA / 9mA
- No Load Running Current: 350mA / 450mA
- Deadband: 8us / 8us
- Connector Wire Length: 300mm (11.811 in.)
- Connector Wire Gauge: 24WAG
- Dimensions: 40.6 x 19.8 x 37.8mm (1.598 x 0.780 x 1.488 in.)
- Weight: 55.2g (1.947oz)
- Motor Type: Cored Metal Brush
- Bearing Type: 2 Ball Bearing
- Case Material: Engineering Plastic
- Gear Material: 1 Metal+Plastic & 3 Metal Gears
- Horn Gear Spline: 25T (6.0)
- IP-Rating: IP4X
- Servo Amplifier Type: Analog Controller
