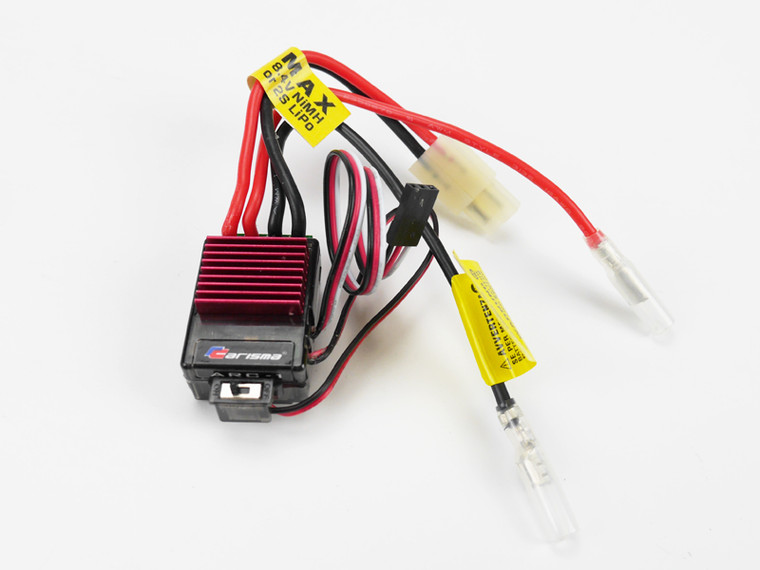

Carisma - ARC-1 Brushed Crawler ESC - 15914
CARISMA
$34.39
$35.99
(You save
$1.60
)
Write a Review
CARISMA
Carisma - ARC-1 Brushed Crawler ESC - 15914
Forward:
Max instantaneous Current: 500A
Max continuous Current: 40A
On resistance: 0.0015 ohm / phase
Backward:
Max instantaneous Current: 250A
Max continuous Current: 20A
On resistance: 0.003 ohm / phase
PWM frequency: 1 kHz
Operation Voltage: 4.8V ~ 8.4V
BEC: 5.6V/1A max at 7.2VWaterproof Lipo and NiMH Friendly End points calibration 4 ESC modeS Thermal protection Stall protection: Size: 40mm(L) x 27mm (W) x 22mm (H) Motor connector: 4mm bullet for brushed motor Battery connector: Tamiya Style
Waterproof
Lipo and NiMH Friendly
End points calibration
4 ESC modeS
Thermal protection
Stall protection:
Max instantaneous Current: 500A
Max continuous Current: 40A
On resistance: 0.0015 ohm / phase
Backward:
Max instantaneous Current: 250A
Max continuous Current: 20A
On resistance: 0.003 ohm / phase
PWM frequency: 1 kHz
Operation Voltage: 4.8V ~ 8.4V
BEC: 5.6V/1A max at 7.2V
Features:
Specifications:
Waterproof
Lipo and NiMH Friendly
End points calibration
4 ESC modeS
Thermal protection
Stall protection:
